For about a decade, buying a Milwaukee battery required no research. The bigger the pack, the more power. The shorthand was accurate enough that it spread until it became the default advice in every tool aisle and every forum thread on the subject. It no longer holds. Milwaukee’s own power ratings now place a 6.0Ah pack on the same rung as a 12.0Ah pack, and place two batteries wearing identical 6.0Ah labels a full tier apart from each other. New buyers already lose money choosing between M12 and M18 on voltage alone. Capacity is the second trap, sitting one shelf over. I run Ryobi rather than M18, but I read the same placards, and Milwaukee’s have quietly stopped saying what most shoppers assume they say.
The rule worked because every pack was built the same way
5 cells, 10 cells, 15 cells
The abbreviations on M18 packs began life as size labels. CP meant compact, XC meant extended capacity, and HD meant high demand. Underneath the plastic, the difference was cell count and nothing else. A CP pack held 5 cylindrical lithium-ion cells, an XC held 10, and an HD held 15, all drawn from the same generation of the same chemistry. That is why the shorthand worked so well for so long. Wiring more identical cells in parallel raises two things at once: the amp-hour capacity and the amount of current the pack can hand over without overheating.
Runtime and grunt moved together because they came from the same place. Anyone who grabbed the physically largest battery on the peg really was buying the strongest one, which meant someone buying their first Milwaukee tool could skip the research and still land correctly. Milwaukee has spent the past few years quietly dismantling that arrangement.
A 6.0Ah pack now sits on the same rung as a 12.0Ah pack
What Milwaukee’s own power scale admits

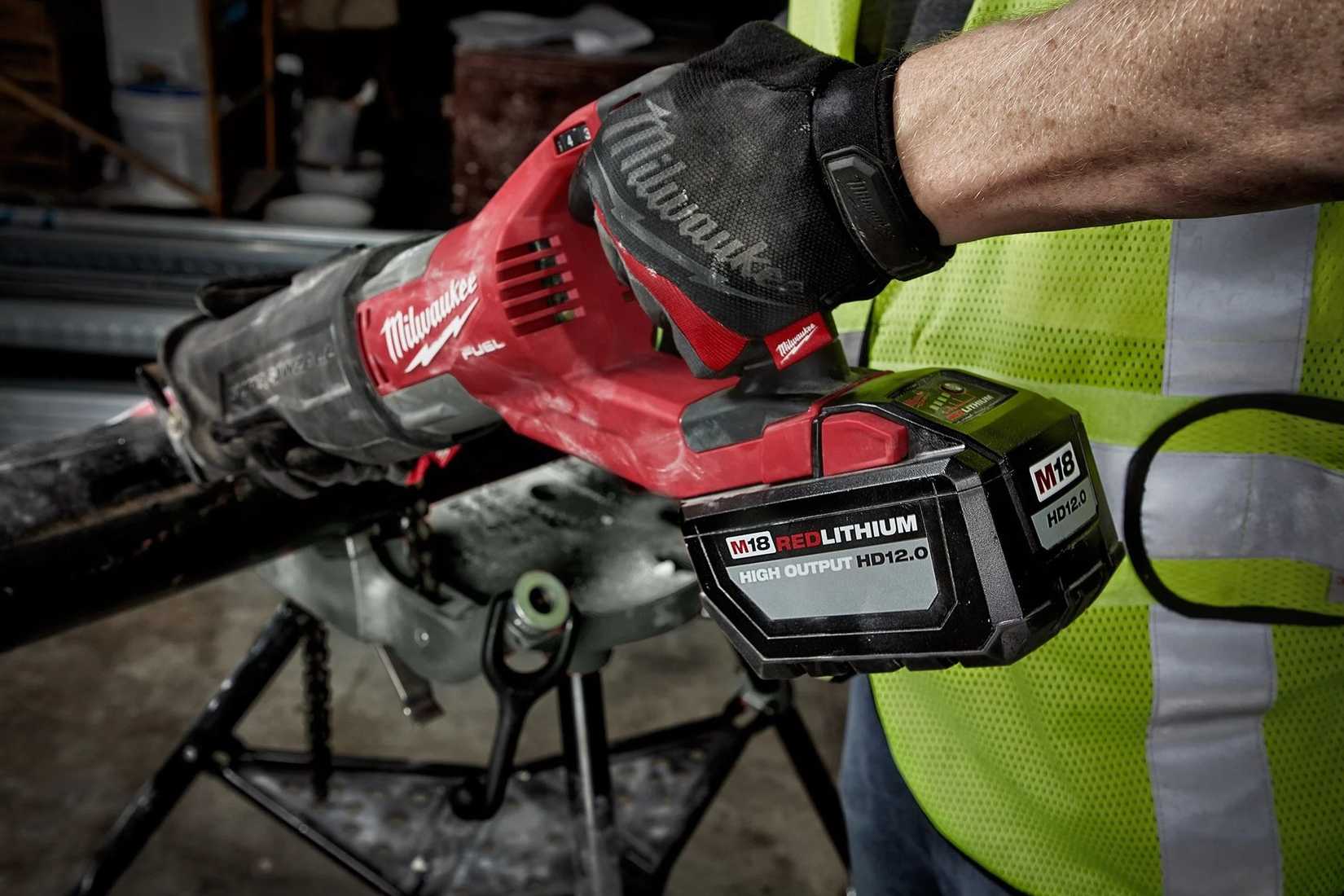

Milwaukee publishes a power scale running from PWR1 to PWR5, and it is the clearest evidence that capacity stopped predicting output. The standard XC5.0 sits at PWR2. The HIGH OUTPUT XC6.0 sits at PWR3. The HIGH OUTPUT HD12.0, a 3.3lb brick holding 15 cells, sits at PWR4.
So does the REDLITHIUM FORGE XC6.0. Same tier, half the amp hours, 2.07lbs on the scale. Milwaukee states plainly that the FORGE XC6.0 delivers HIGH OUTPUT 12.0 power in a smaller, lighter package, which is an unusual thing for a company to advertise about a battery it still sells at full price.
Look at what that does to the label. Two packs both stamped 6.0Ah, hanging inches apart on the same rack, are separated by an entire power tier because one reads HIGH OUTPUT and the other reads FORGE. The number they share has become the least useful thing printed on either of them. Amp hours describe how long a tool runs, not how hard it pulls, and those two questions finally have different answers.
The change is inside the cell, not on the label
Pouch cells and tabless connections
A conventional lithium-ion cell collects its current at a small metal tab welded to one end. Everything the cell produces funnels through that tab. It bottlenecks the flow, raises internal resistance, and turns a portion of the energy into heat, which is what makes a pack sag halfway through a demanding cut.
FORGE attacks that bottleneck from two directions. The XC6.0 uses pouch cells, flat and stacked rather than rolled into a metal can. The HD12.0 uses cylindrical cells with a tabless connection, where current leaves along the full edge of the electrode instead of a single welded point. Both designs shorten the path and widen it at the same time. Less resistance means more current can move safely, and less of the pack’s energy gets burned warming itself up.

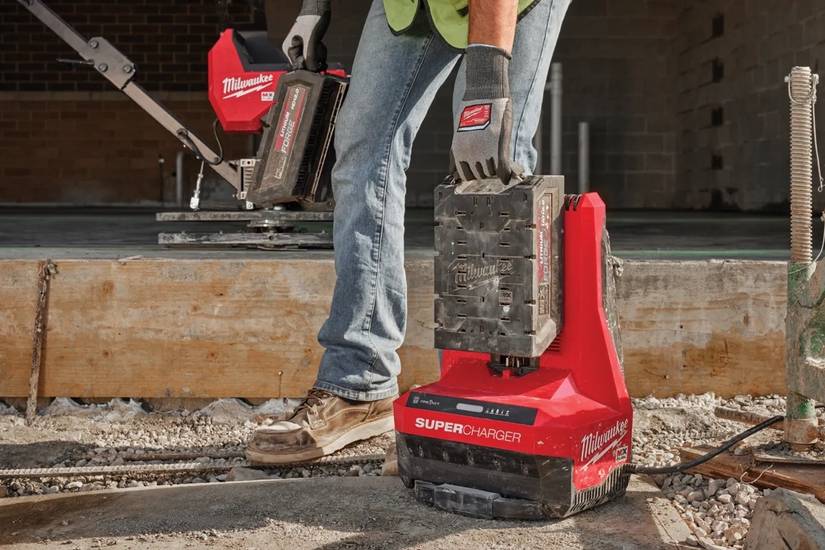

Charging improves for the same reason. Milwaukee rates the FORGE XC6.0 at 15 minutes to 80% on its dual-bay Super Charger. Ryobi has taken nearly the same route with its Edge line, which is a large part of why I stopped treating the tool as the real purchase.
Same peg, same price, different tier
Read the tier name before you read the number
Pricing is what makes the old habit expensive. A HIGH OUTPUT XC8.0 and a FORGE XC8.0 both list around $199. A HIGH OUTPUT HD12.0 and a FORGE HD12.0 both list around $249. Identical capacity, identical money, and in each pair one battery is a full tier stronger than the other. The FORGE HD12.0 is currently the only PWR5 pack Milwaukee builds, and the company claims 50% more power than the HIGH OUTPUT 12.0 sitting right next to it.
The fix takes almost no effort. Amp hours still answer the runtime question honestly, so pick capacity based on how long you want to work between charges. Everything about how hard the tool pulls lives in the tier name and the PWR number, and that is what decides whether a grinder holds its speed or bogs down in the middle of a job.
Compatibility never entered into any of this. Every M18 pack still fits every M18 tool, which remains the whole argument for committing to a single platform.
Amp hours are a fuel gauge, not a horsepower rating
Milwaukee did not make its lineup worse. It made a decade-old buying habit obsolete, and the packaging has not caught up. A number that used to answer two questions now answers one, and the more important answer moved to a smaller line of text most people skim past on their way to the register. Ryobi and DeWalt are shipping packs built the same way, so this is not a red-tool problem. Spend the extra 30 seconds reading the tier name. That is the difference between a battery that runs long and one that genuinely pulls.
